Product Details
Single reusable #8 field repair kits for 1/2 inch hydraulic 2 wire braided hose
.jpg)
1/2" 2-wire Reusable #8 hydraulic hose repair kits. to be used on 1/2" I.D. double wire braid hydraulic hoses rated at (4,000 ) psi.
Not to be used on super high-pressure skive hose.
This is for your run of the mill snow plow, farm equipment, log-splitter, etc.
***for 1/2 inch ID hose. outside diameter should be .81 inches***
| Availability: | In Stock |
| Ships From: | Dallas, TX |
Full Description
Use the same fittings the field repair technicians use when they charge you $350 for a service call!
What you will also want in your field repair toolbox (not included with kit!)
-1 pair of vice grip pliers
-2 medium sized adjustable wrenches
-Something to cut the bad line with... best thing you could have is a air die grinder with an air hose with glad hand fittings on the end so you can connect to your truck's air.
-Clean up rags
-Oil spill kit (yup, we sell those too!)
Guidelines:
Make sure you power down the pump before you start!
Cut hose in half about a half inch on either side of the leak. The ferrules (collars) are reverse threaded, so LEFTY tighty. Screw these all the way so the hose end comes up to the top of the wide part of the ferrule.
Click On Photos For Larger Image
.jpg)
.jpg)

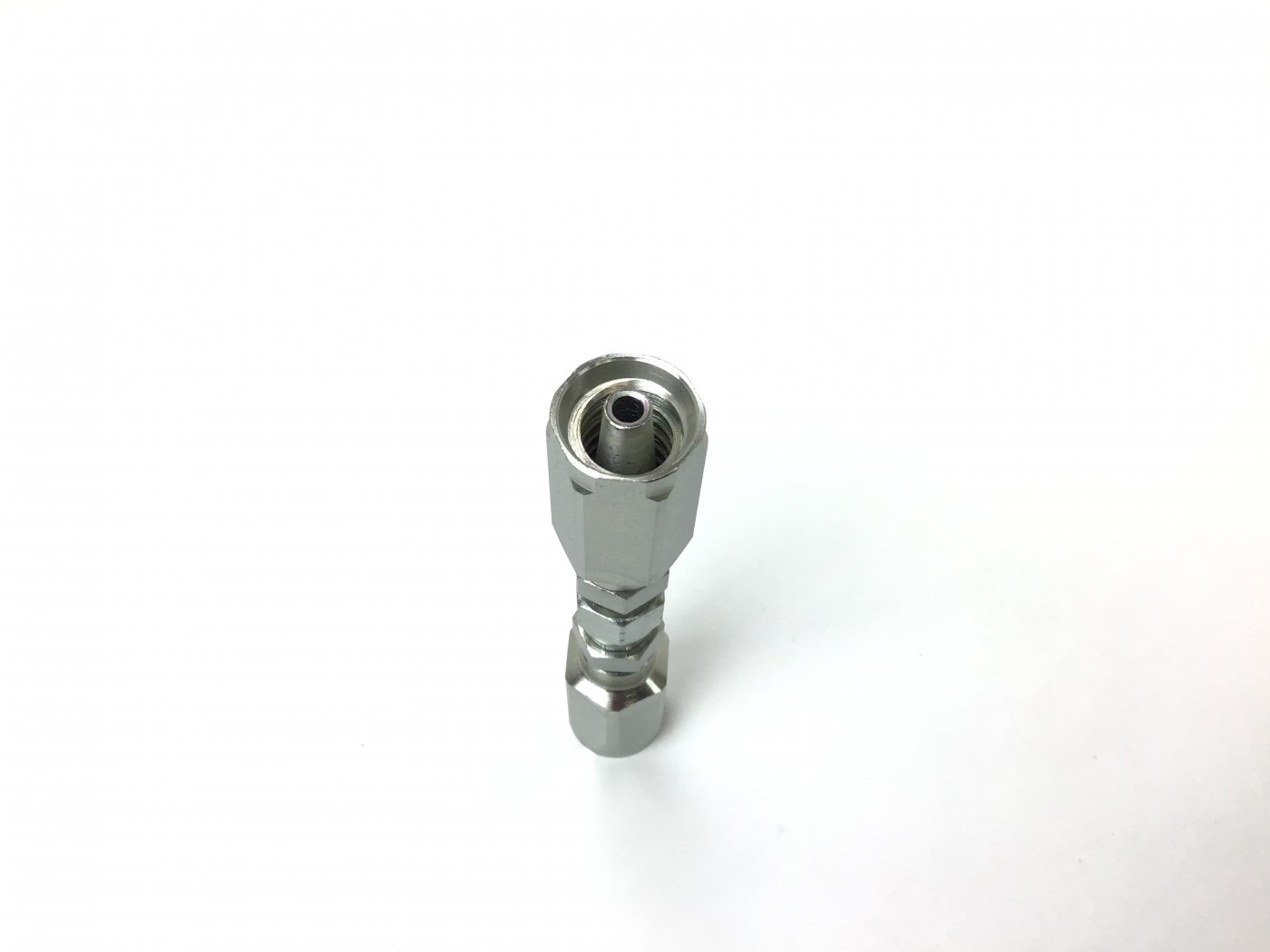

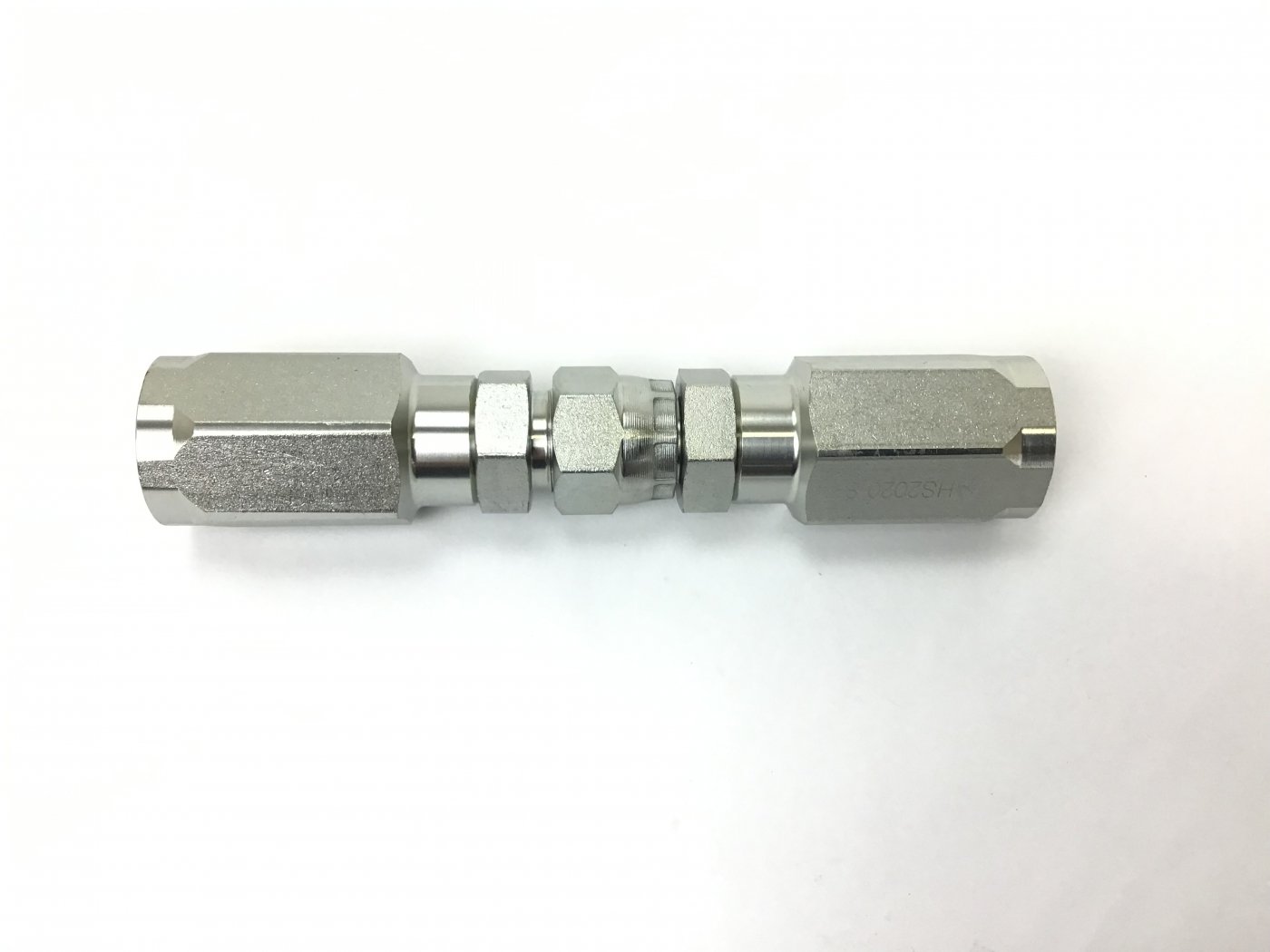

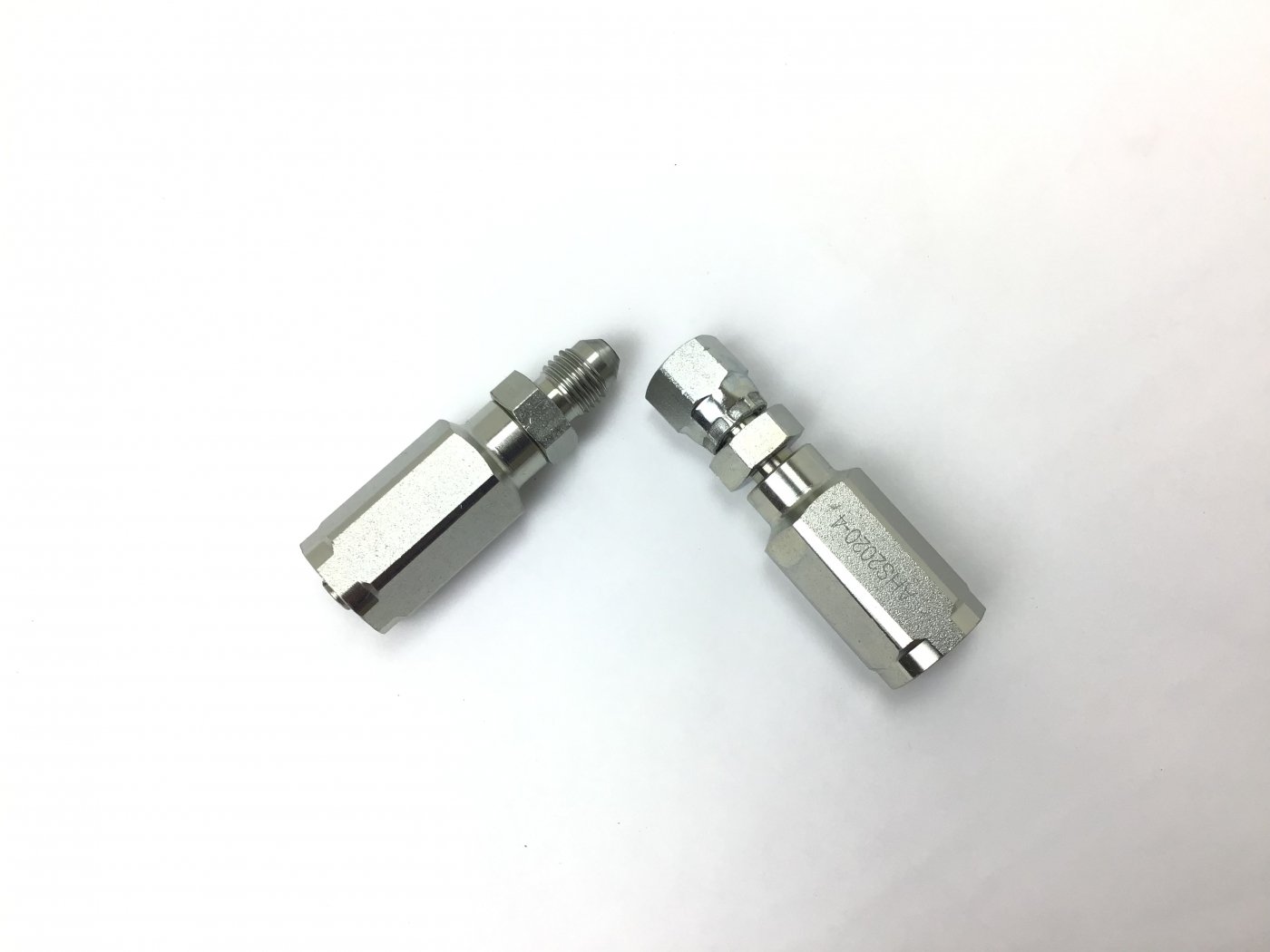

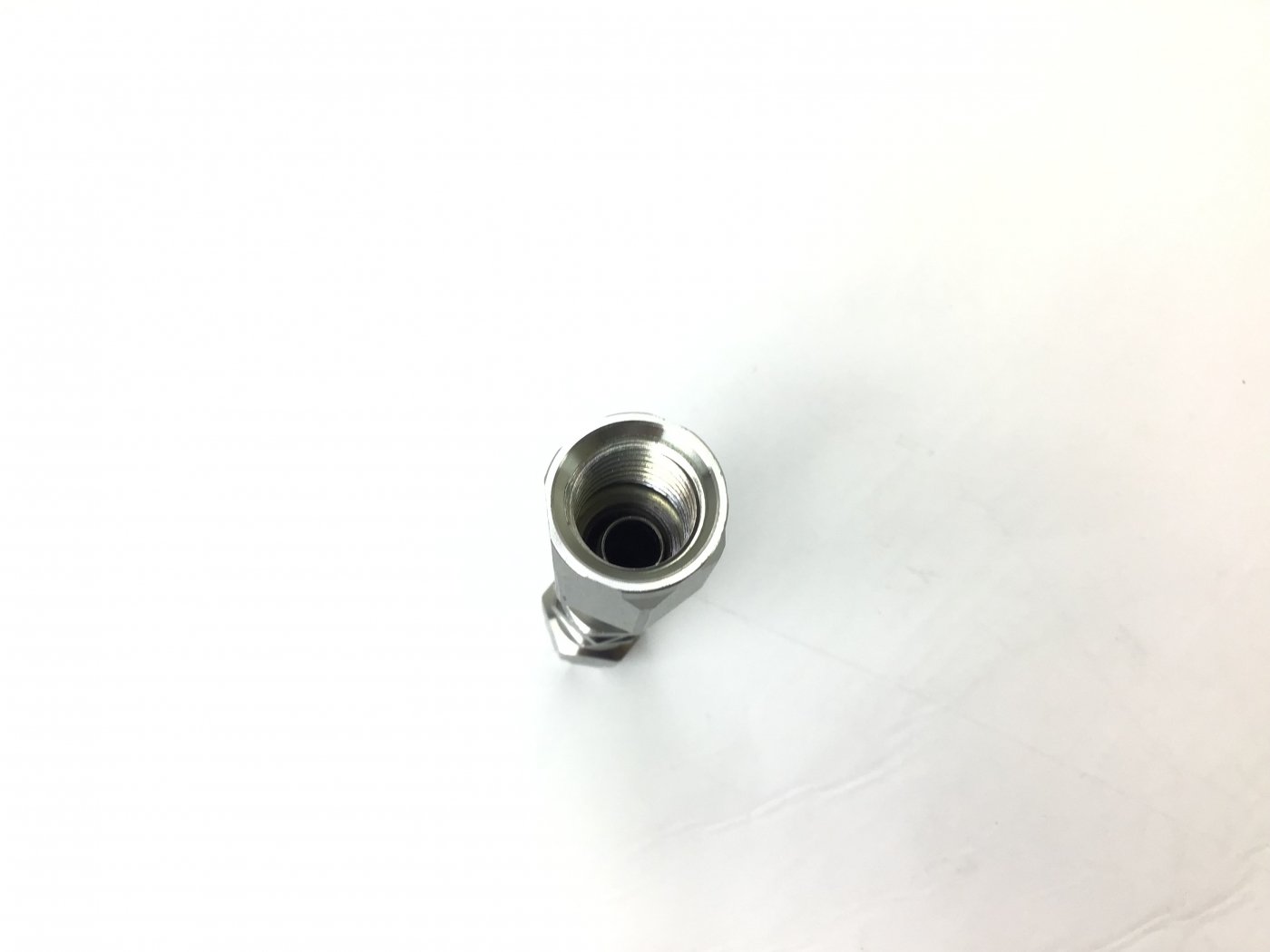

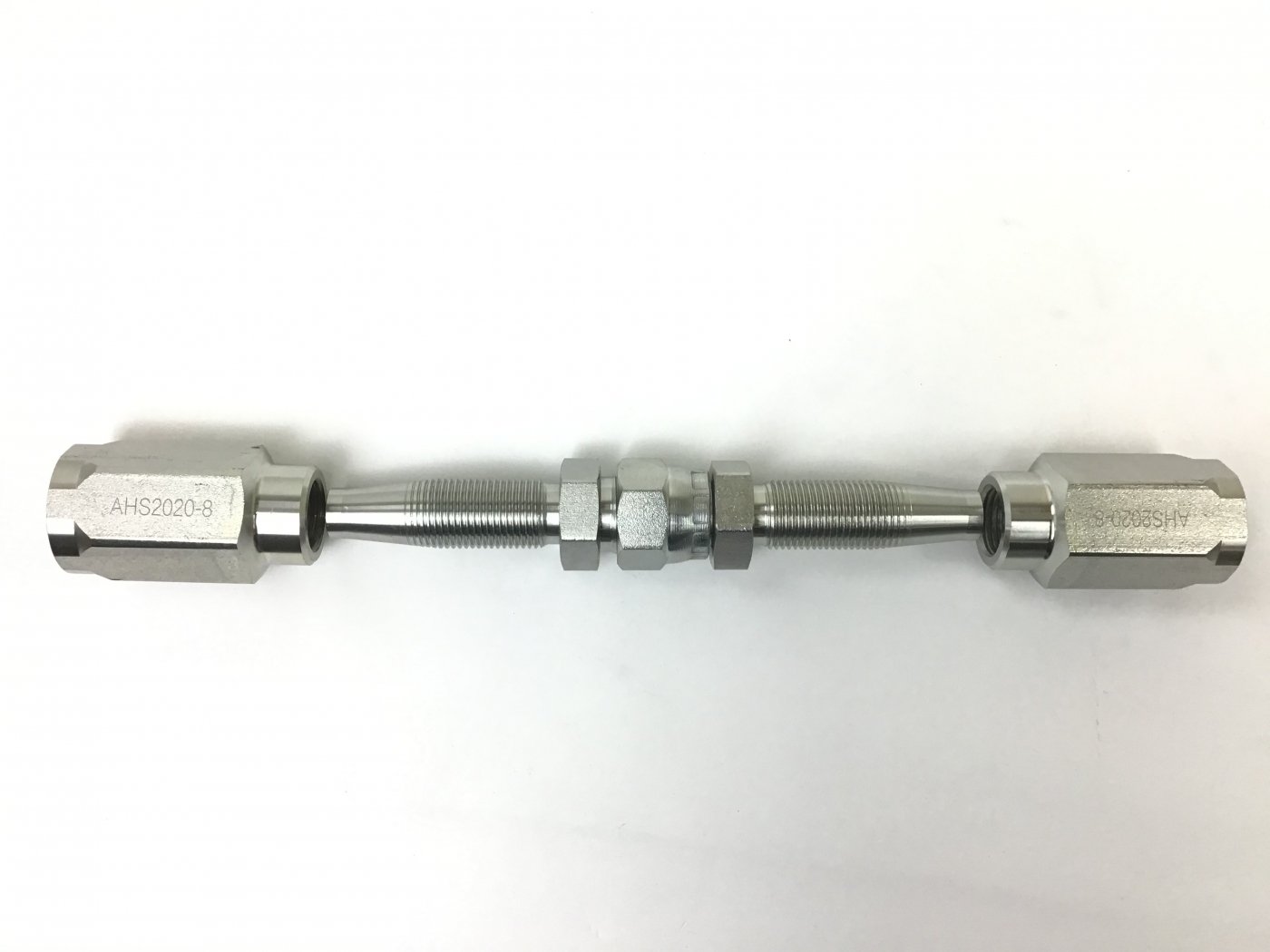

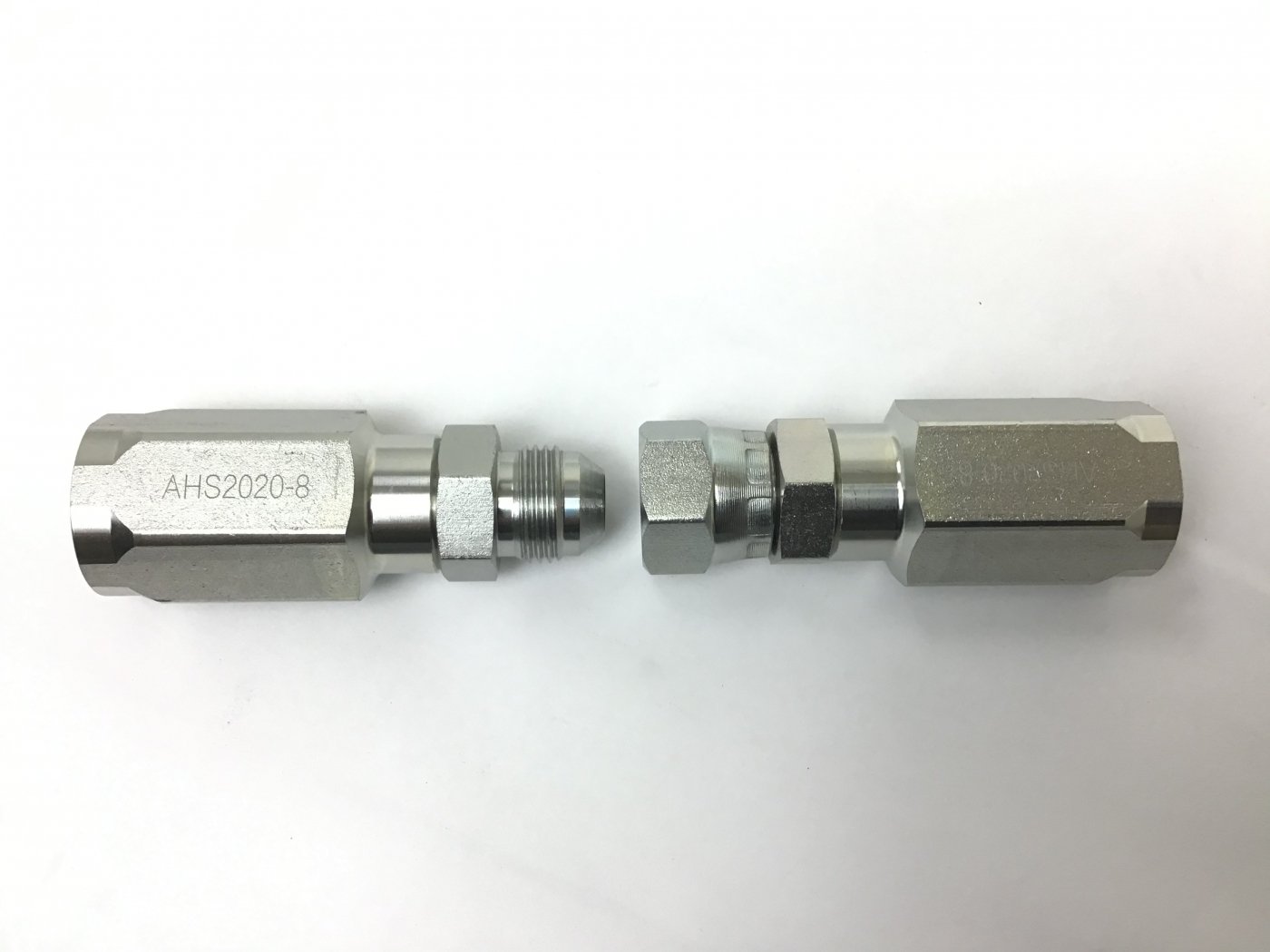

This shows you what you get... bottom is fully assembled. Top shows you the components.
