Product Details
20 Foot Modular Car Loading (6 piece) Ramp System for Dry Van Trailers - 2 Stands
SKU: DR-05-20-240-02-06M-High-REV1
NEW! Modular car ramp system for dry van trailers... perfect for deck heights above 40 inches. Comes complete with towers, pins, safety straps.
Made to order, call for production time, and freight cost. (production time can be as much as 4-6wks)
Made to order, call for production time, and freight cost. (production time can be as much as 4-6wks)
| Availability: | Call for Availability |
| Ships From: | Kewaskum, WI |
| Length: | 20 ft |
| Ramp Hook Style: | Flat Plate |
Full Description
Shipping cost ranges from about $350-$550 depending on your location and whether you are at a commercial or residential address.
- 5000 lb per axle rating
- ramps are 3 inches thick, plus tread face of approx 3/8"
- hook style features 6 inch flat tab plus safety strap
- 2 separate support stands
- knife edge foot plus 20 foot length makes it easy to load exotics!
- lightweight ramps only 70 lbs each 10 foot section!
- support bar dimensions: 96" wide cross bar about 5" x 5"
Old SKU: DR-240x20-02-06M-05-H-R1

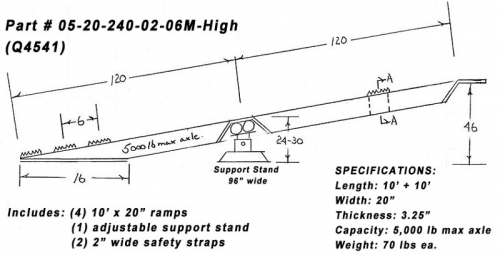

Click On Photos For Larger Image
