5/8" V10 G100 Blue Hammerlock Coupling Link

Part#: 8453400 alt 8953400
Mfg# WLK16
Trade Size: 5/8"
Trade Size: 16mm

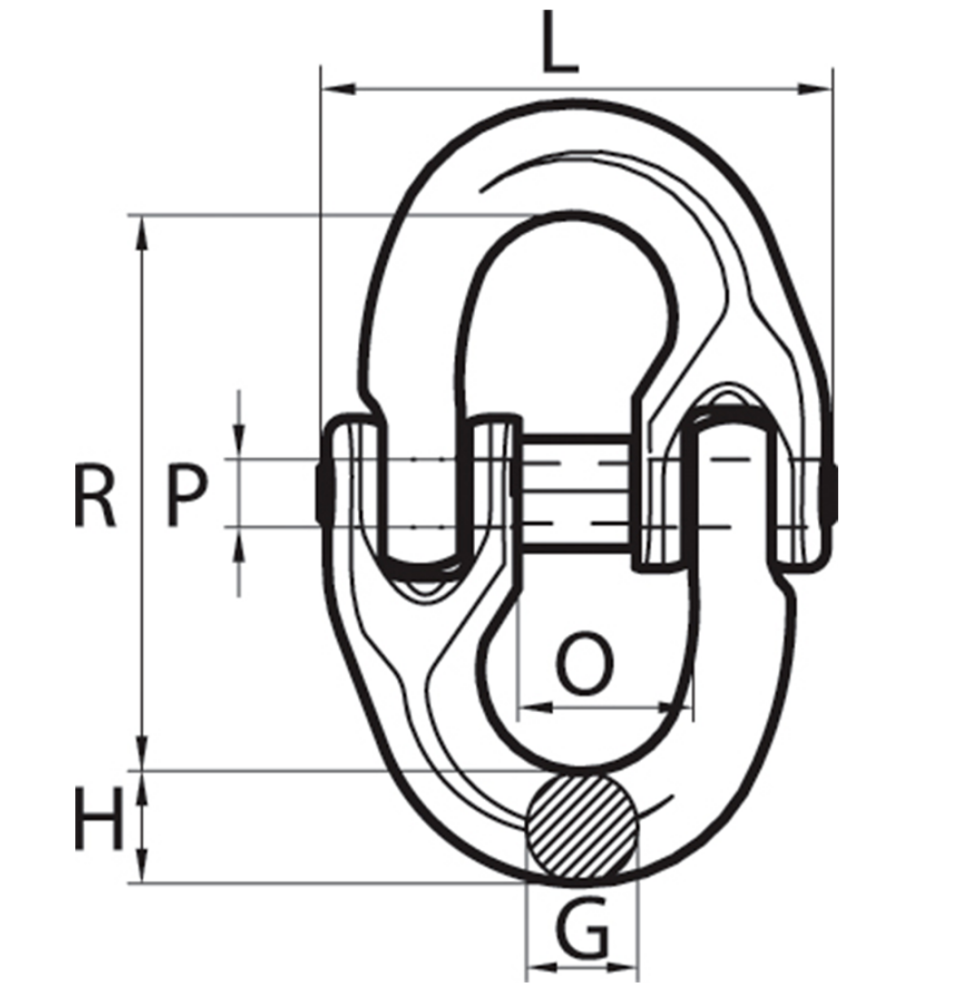

Dim G: 0.827"
Dim H: 0.827"
Dim O: 1.299"
Dim P x L: 0.55" X 4.17"
Dim R: 4.055"
Weight: 3.15lbs
WLL: 22,600lbs

• V10 fittings’ technical features outperform current market standards. Such accomplishment is made possible by our integrated manufacturing process that begins with the raw material and ends with the issuing of the test certificate of the finished product • The production cycle begins with the hot forming process and ends with the final test • 100% Proof tested to 2.5 times the working load limit (WLL) • Safety factor 4:1 • Compliant with the main international standards (EN, ASTM, AS).
