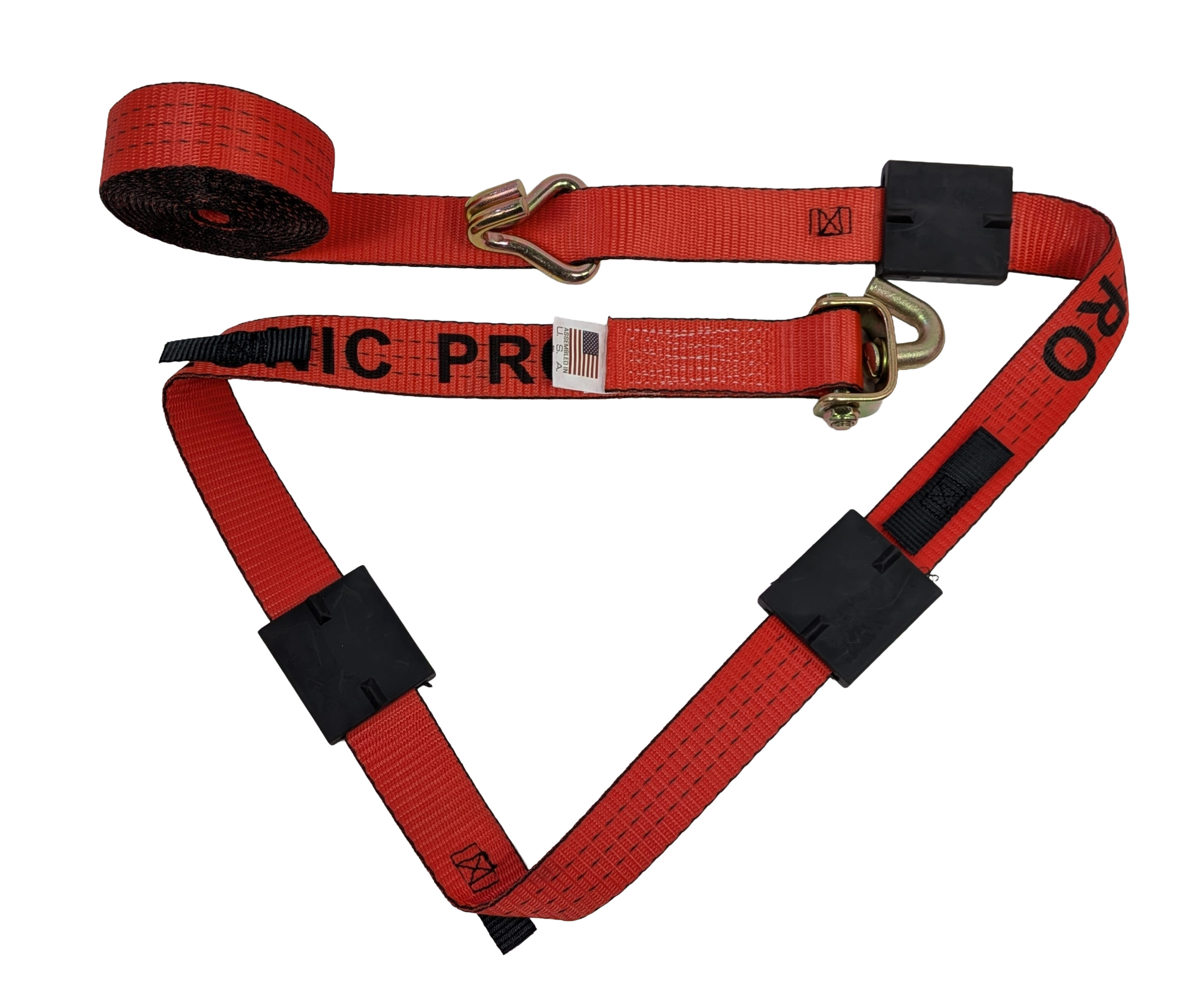

Crossover Wheel Strap - Forged Swivel J + 13.2K Wire Hook + TECNIC PRO
The swivel bracket can create a concentrated wear point where it contacts the webbing, particularly in the idler position. When the strap is compressed against the deck, the bracket’s relatively sharp profile can increase localized abrasion or cutting of the webbing.
The Crossover strap addresses this abrasion problem without reducing the assembly’s 3,700 LB WLL. It uses a forged short swivel J-hook on the sewn end and a 13,200-lb wire hook in the idler position. The heavier wire hook preserves the required assembly strength while its rounded profile provides a broader, more forgiving contact surface against the webbing. Finally, it uses our 18,000 LB TECNIC PRO webbing for greater durability in heavy-use applications.
-
Pickup Available at our Dallas, TX Outlet Store! Learn More
-
Free Shipping CONTUS after $150 for items that can ship via UPS Ground. (Below 94" length and/or under 50 lbs.)
Specifications
| Length | 16 ft |
|---|---|
| Hook style | 13,200 lb Wire Hook, Short Swivel J Hook |
| Tread grabs | 3 tread grabs |
| Fits trailers | Cottrell NextGen |
| Webbing material | TECNIC 18,000 lb Webbing |
| Ratchet handle included | No |
| Working load limit wll | 3,700 lbs |
| Idler | 1 idler hook |
